We recognize that many in the Jeep community have access to a machine shop and a knack for building cool things. So we're offering the 3D CAD design files free of charge for personal use.

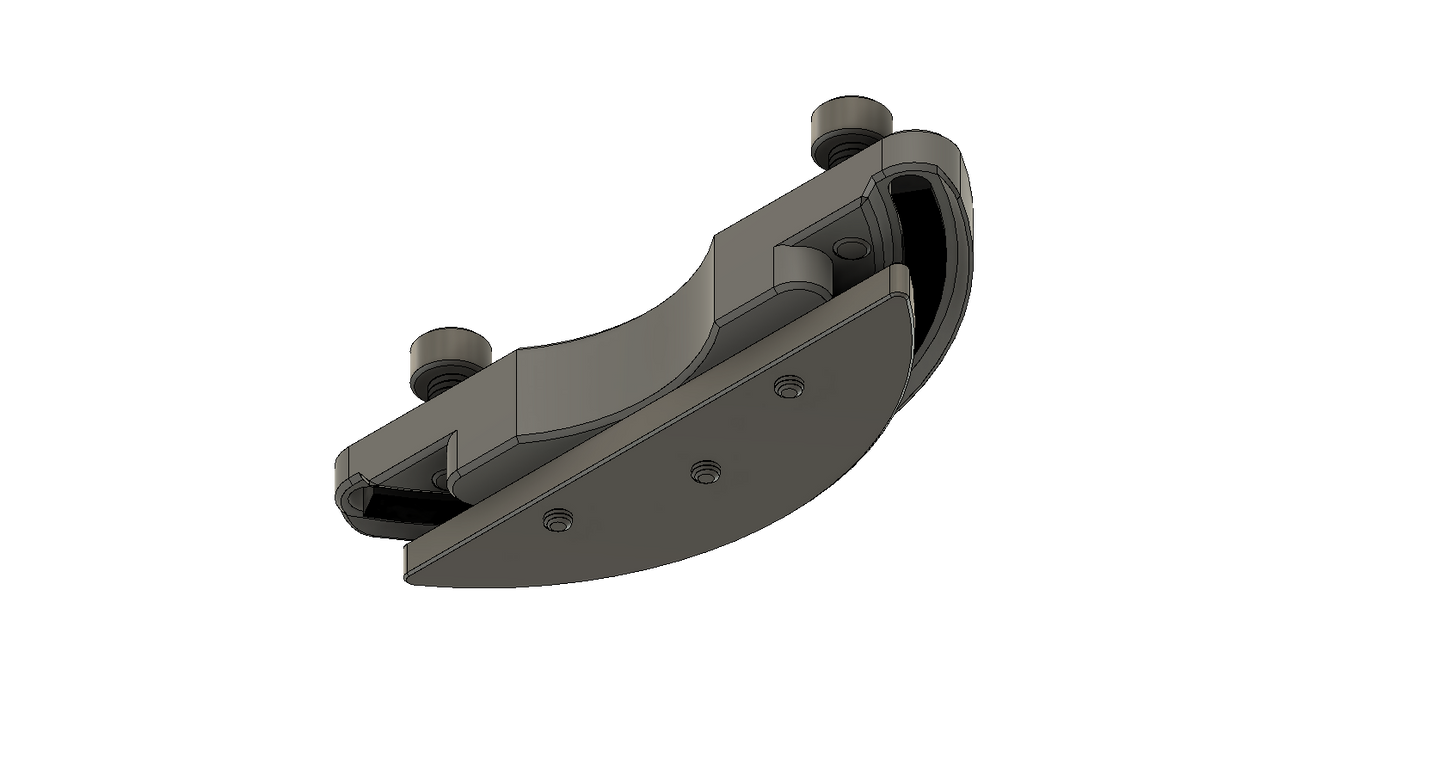

Autodesk Fusion 360 Parametric CAD files that can be used to CNC mill or to 3D print. Also available in STEP and other formats. Please select when 'ordering'.

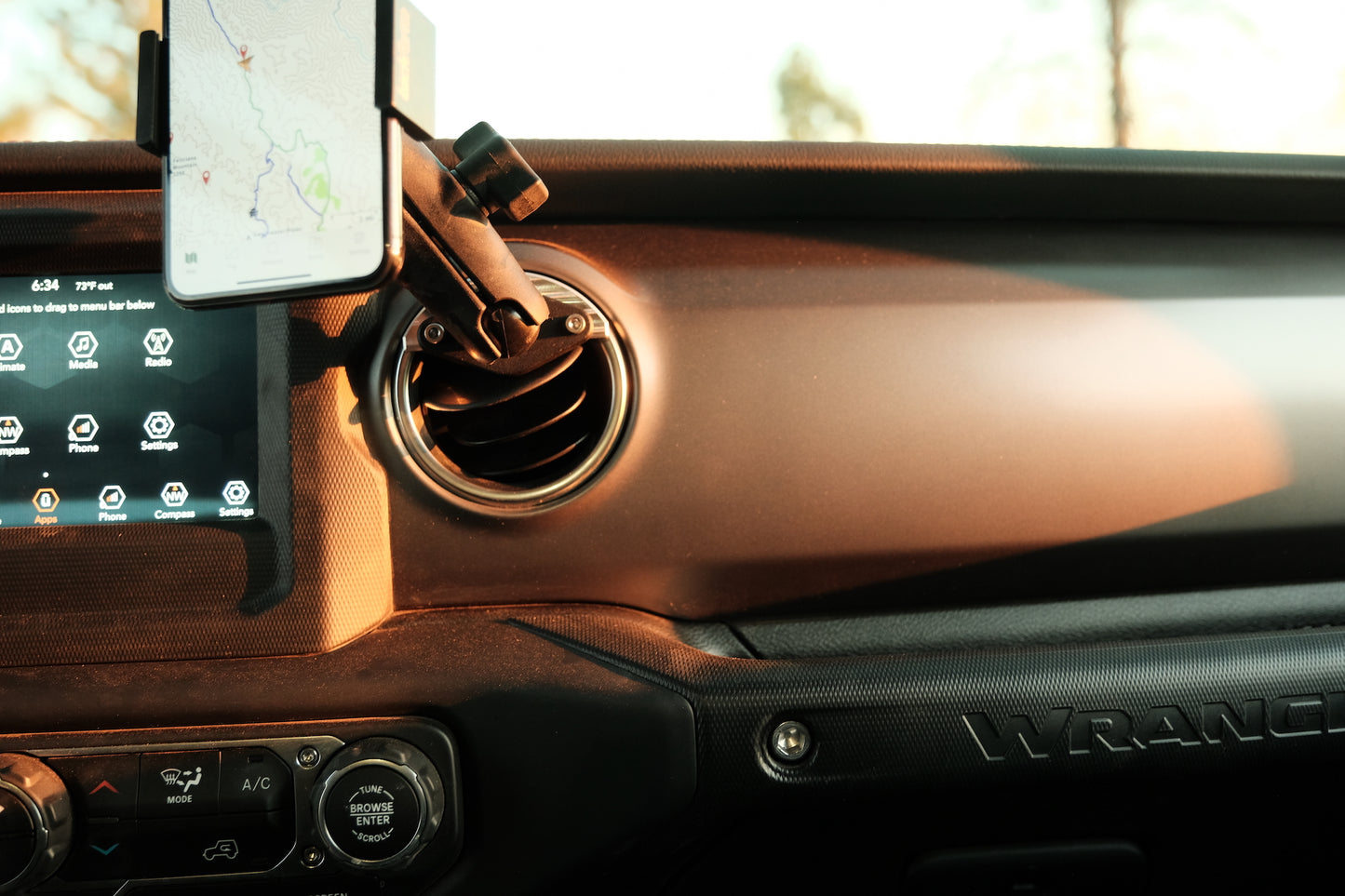

Air vent clamp dash mounting clamp for Jeep® Wrangler JL and Gladiator. Simple and high quality holder for overlanding and expedition gear like phone, tablet, CB radio, Garmin devices and other off-road overlanding gear
- Installs in under 2 minutes with Allen keys (L-wrenches)
- Requires no drilling through dashboard, no sticky tape, no suction cups, no glue.
- It mechanically clamps to the inner lip of the middle air vents.
- Does not rattle. Does not obstruct vision, the speakers, or mirrors and dash top storage can still be used.
- Precision machined from high quality aluminium, hard anodized surface and stainless steel for rugged off-road use.
- Rubber insert protects Jeep air vent bezel from scratches and marks.
- Mounting holes designed for AMPS hole pattern (1.912" on centre distance) with M4 thread.
- Fits Jeep Wrangler and Wrangler Unlimited (JL) (2018+) - centre air vents only
- Fits Jeep Gladiator (2019+) - centre air vents only
- Air vent maintains most of its functionality: flow range (0-70%), direction (+/- 25deg)
- Designed for Aluminium 6061-T6 hard clear anodized
- Stainless steel mounting screws
- Oil resistant Buna-N rubber square ring
- The clamp has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of mounts and third party cradles.
Bill of Materials
|Front plate - AL6061-T6, Clear Matte Anodized||1|
|Backing plate - AL6061-T6, Clear Matte Anodized||1|
